Pit Boss 1600 Pellet Dump Problem

Mr.coon

Member
Joined
Aug 5, 2021
Messages
38
Reaction score
61
Location
Louisiana

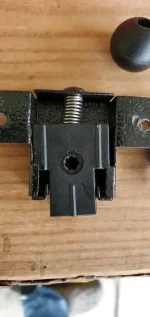

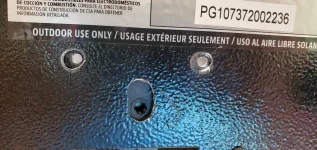

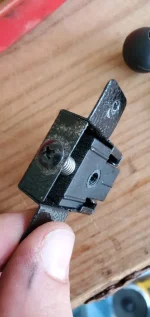

Anyone else having issues with their pellet dump on the 1600? I went to use mine for the first time and the catch pin on the trap door got stuck. I had to take it apart to get the plastic pin to go back down. It jumps the track on the way up and gets stuck every time. The whole catch assembly is a bit misaligned with the holes on the hopper which doesn't help. It makes sliding the lever up very difficult.


Attachments

  • 20210819_172906.jpg
    106.2 KB · Views: 16
  • 20210819_172914.jpg
    91.8 KB · Views: 13
  • 20210819_173321.jpg
    106.2 KB · Views: 13

ANT0407

Well-known member
Joined
Feb 15, 2021
Messages
753
Reaction score
1,134
Location
NH
Mine doesn't get stuck but I always think it could work a whole lot smoother every time I use it.

OP
OP
Mr.coon

Mr.coon

Member
Joined
Aug 5, 2021
Messages
38
Reaction score
61
Location
Louisiana
I see now that mine looks a little bent. I am going to see if I can straighten it out and put some chamfers on the plastic pin to help it slide back to where it is supposed to be. I was so frustrated at the time I couldn't think of any of that.

OP
OP
Mr.coon

Mr.coon

Member
Joined
Aug 5, 2021
Messages
38
Reaction score
61
Location
Louisiana

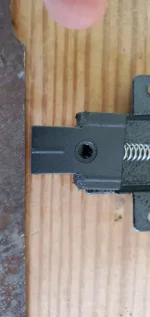

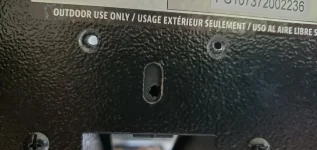

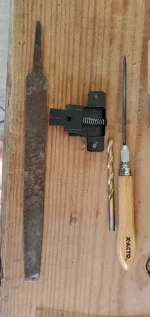

Well it worked! I had to ream all the holes out well, especially the slide.

Operates like it is supposed to, smooth and easy.


Attachments

  • 20210821_095427.jpg
    152.9 KB · Views: 18
  • 20210821_095438.jpg
    83.7 KB · Views: 17
  • 20210821_100224.jpg
    188 KB · Views: 18
